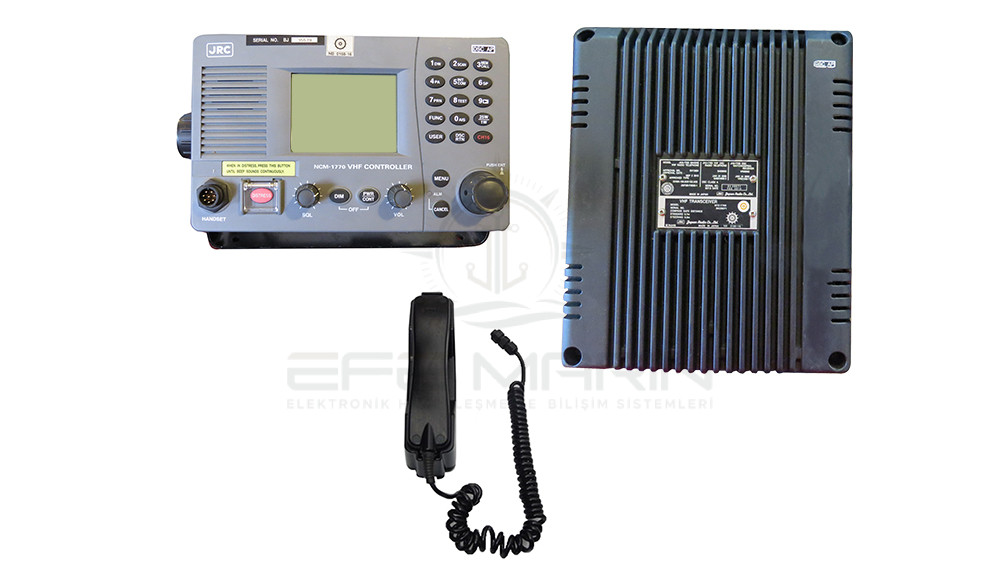

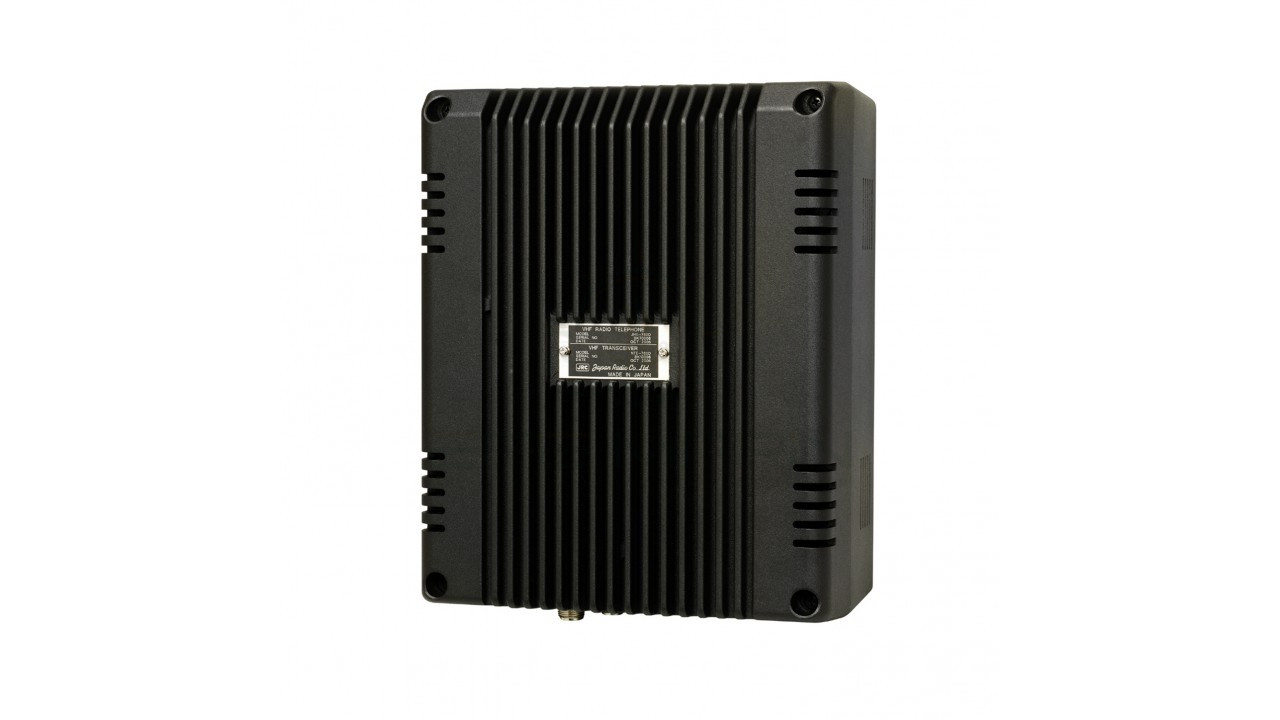

JRC JHS-770S/780D (NCM-1770) VHF DSC
VHF / DSC

Unique features ● Available as semi-duplex or full-duplex, this class A VHF radiotelephone incorporates advanced modular design that allows for maximum installation flexibility.

Teklif Formu

Direct call by AISTM When connecting your AIS to the new VHF, new possibilities become available. This innovative feature, unique to JRC, allows you with one push of the button, to quickly navigate through a list of targets in your surrounding area. Bearing, range and MMSI information of target vessels are sorted from the shortest range upwards. You can now easily select the vessel you wish to get in contact with, and send a DSC message immediately. Intercom and loudhailer The VHF radiotelephone has an intercom functionality for easy communication with multiple other VHF controllers onboard! Additionally, to always be in full control and on top of communication with deck or dock hands, a loudhailer function is built in. An optional external speaker with amplifier increases talk power, making your messaging loud and clear, thereby adding to the safety of the vessel. Clear display Improved visibility is realised by the integrated 3.8" high brightness silver LCD screen with excellent sunlight viewability. The main data is displayed in large characters for easy reading. Extendable up to 5 controllers The VHF series configuration allows having up to 5 controllers covering various important sections onboard. Additionally, there is a range of possibilities for connecting extra handsets and printers. 120 seconds digital recording JRC has included a recording function for the last 120 seconds of open squelch (voice). In situations where loud engines or other background noises disrupt your reception, this characteristic feature enables you to immediately repeat any unclear messages. Wing controller For wing and/or outside applications, JRC has developed an optional, simplified channel selector. This compact weatherproof unit allows basic operation, such as channel and power selection, and has a channel 16 preset. Easy configuration The JHS-770S/780D is developed upon maximum flexibility, having a separate transceiver and controller allowing flexible installation in confined spaces. Either panel, desktop or overhead mounting is possible with this size reduced VHF radiotelephone. Easy operation The combination of push buttons and JOG dial operation, together with JRC's innovative software including easy menu structures ensures logical, accurate and convenient operation. StarNetwork JRC has been providing sales and support of products since1915! Today, JRC offers comprehensive support through its organisation, in partnership with a world-wide StarNetworkTM of over 270 fully qualified agents, giving support 24 hours a day, 7 days a week, and 365 days a year!

Model-JHS-770S
GMDSS compliance
yes
General
Communication mode
simplex/semi-duplex
Model-JHS-780D
GMDSS compliance
yes
General
Communication mode
simplex/duplex
Model-JHS-770S & JHS-780D
General
Frequency range
155.00 - 163.50MHz
TX
155.00 - 163.50MHz (simplex/semi-duplex), 156.00 - 157.45MHz (duplex)
RX
155.00 - 163.50MHz (simplex/semi-duplex), 160.60 - 162.05MHz (duplex)
Output power
25W/1W
Modulation type
radiotelephone G3E/F3E, DSC/ATIS G2B/F2B
Channel spacing
25kHz
Frequency accuracy
within ±10x10-6
Antenna impedance
50Ω unbalanced
DSC CH70 receiver
built in
DSC CH70 frequency
156.525MHz
DSC received message LOG
20 distress messages
20(TX)+20(RX) non-distress messages
Outputs
IEC-61162-1
VDR/S-VDR
Audio
600Ω 0dBm balanced (to VDR/S-VDR), unbalanced (to ext. loudspeaker)
RS232C
for external printer NKG-91 and DPU-414
Channel capacity
ITU/USA/Canada
57 channels max
Inland Waterway
57 channels max
Private
200 channels max (channel steps: 25kHz, 12.5kHz, 10kHz)
Weather
10 channels max
Memory
10 channels max
Inputs
IEC- 61162-2
AIS
IEC- 61162-1
GPS
Environmental conditions
Power voltage
DC 24V +30% -10%
Current consumption
DC 24V input, 8.3A max
Ambient condition
temperature: -15°C +55°C (range for full performance 0°C +40°C)
Optional items
Power supply unit
NBD-865 (for AC operation)
Remote VHF controller

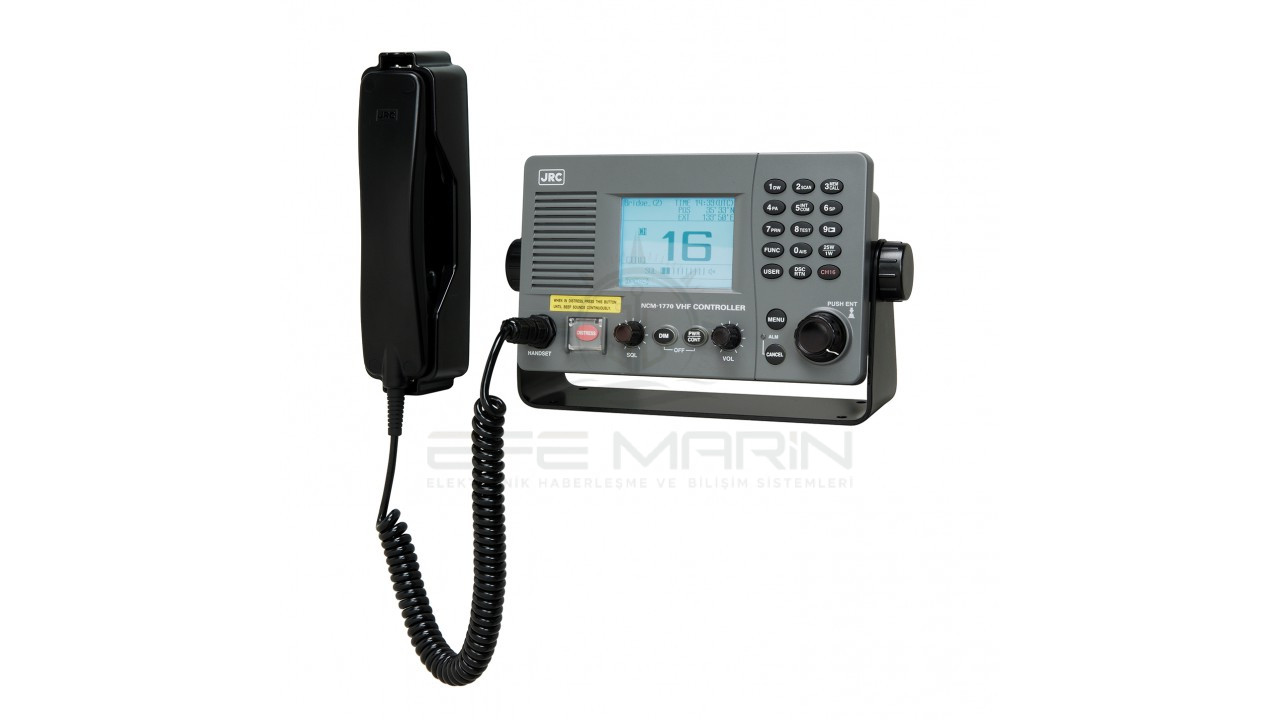

NCM-1770(with handset, cradle and cable)

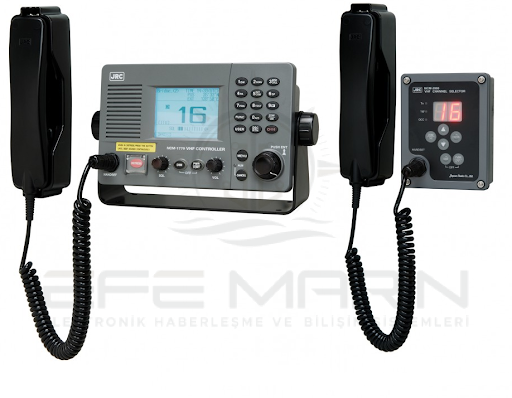

VHF channel selector
NCM-2000
Controller connection box
NQD-2770
Flush mounting kit
MPBC42957(for NCM-1770)
Controller bracket
MPBX44354
Handset
NQW-261 (with cradle)
Handset connection box
NQE -1847
Handset connection box (waterproof)
NQE-1845(flush mount) / NQE-1846(wall mount)
Printer (table mount)
DPU - 414
Printer (flush mount)
NKG-91
External speaker (wall mount)
NVS - 423
External speaker (flush mount)
NVS - 423A
Extension board
CQD-7701 (required for multiple controllers)
