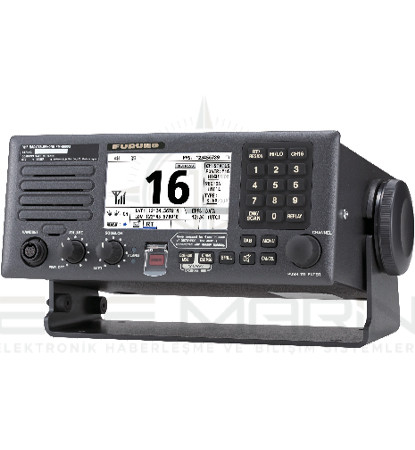

FURUNO FM-8900S VHF DSC
VHF / DSC

Full GMDSS-compliant VHF radiotelephone with Class-A DSC facility and CH70 watch receiver Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14

Teklif Formu

Semi-duplex 25-Watt VHF radiotelephone with a built-in Class-A DSC and CH70 watch Receiver Fully meets GMDSS carriage requirements for SOLAS ships Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13 Easy to read, high-contrast 4.3" bright color LCD Enhanced noise reduction and speaker for superb voice quality Quick access to CH16 key Quick access to CH16 key Press the CH16 key on the keypad to switch to radiotelephone displayand select CH16 instantly Automatic entry of own ship position and time through the interfaced GPS receiver ATIS signal transmission available for inland waterways Connect to an office or home via an existing PSTN (Public Switched Telephone Network) Scans all channels in the selected region and CH16 The FM-8900S scans all channels in the selected region as well as watches CH16 in alternate shift. By long-pressing (3 seconds) the {DISTRESS} button, DSC distress alert can be transmitted. Also, quick entry to DSC message composition screen is available by use of {DISTRESS MSG} and {OTHER DSC MSG} buttons. For general DSC messages, press {OTHER DSC MSG} to enter the composition screen. For DSC messages for distress alert, press {DISTRESS MSG} to enter the composition screen. For DSC messages for DROBOSE (DSC Relay On Behalf Of Someone else), press both {DISTRESS MSG} and {OTHER DSC MSG} to enter the composition screen.

SPECIFICATIONS
PRODUCT NAME
VHF RADIOTELEPHONE
GENERAL CHARACTERISTICS
Rules and Regulations
VHF Radiotelephone
EN 301 925 V1.3.1 (2010-09)
VHF ATIS
EN 300 698-1 V1.4.1 (2009-12)
DSC
ITU-R M.493-13 (10/2009)
ITU-R M.541-9 (05/04)
ITU-R M.689-2 (09/94)
EN 300 338-1 V1.3.1 (2010-02)
EN 300 338-2 V1.3.1 (2010-02)
Class of emission
G3E (Radiotelephone), G2B (DSC)
Communication system
Simplex/Semi-duplex
Channels
INTL: 57 (ITU-R Radio Regulations Appendix S18)
USA: 50 (FCC 47 CFR Ch. 1 § 80.371, § 80.373)USA: 50 (FCC 47 CFR Ch. 1 § 80.371, § 80.373)
Canada: 57 (Industry CANADA RBR-2)
Weather: 10 (USA and Canada, receive only)
Inland waterway: 57 (ETSI EN 300 698-1 V1.4.1 2009-12)
Private: 20 (permitted by administrations)
MEMORY CH: 50
Display
4.3 inches WQVGA (480x272 dots), color dot matrix LCD
TRANSMITTER
Frequency range
155.000 - 161.475 MHz
RF output power
High: Max 25 W, Low: Not exceed 1 W
US version: Manual override for 25 W available on
CH13, CH67 and CH77 (usually not exceed 1W)
Frequency stability
Less than ±1.5 kHz
TX timeout (for US & Inland-waterway)
Deactivates the transmitter after an uninterrupted transmission of more than 5 minutes
ATIS
An ATIS signal is transmitted at the end of transmission, by modulating the carrier at 1,300 and 2,100 Hz
RECEIVER
Frequency range
Simplex: 155.000 - 159.600 MHz
Semi-duplex: 161.475 - 164.200 MHz
Receiving system
Double-conversion super-heterodyne
1st IF: 51.1375 MHz
2nd IF: 62.5 kHz
Sensitivity
Less than 6 dB μ V at SINAD 20 dB
Adjacent channel selectivity
70 dB or more
AF output power
Built-in speaker: 3 W (4 ohms. THD 10 % or less)
Handset earphone receiver: 2 mW (150 ohms)
Audio response
De-emphasis of 6 dB/oct +1/-3 dB
DSC SECTION
Message log
Receive: 50 distress messages and 50 non-distress messages
Transmit: 50 messages
Interface
Nav data: IEC61162-1 Ed.4
Printer: Centronics-compatible
Alarm
Audible and visual on receipt of a DSC call
DSC watch-keeping Receiving frequency
Receiving Frequency
156.525 MHz (CH70)
Sensitivity
Symbol error rate: Less than 1 % (at 0 dB μ V)
POWER SUPPLY
24 VDC, Standby: 0.6 A max., RX: 1.8 A max., TX: 4.7 A max.
ENVIRONMENT
Temperature
-15℃ to +55℃
Relative humidity
93% (at 40℃)
Waterproofing
 FM-8900S (VHF Radiotelephone)
IP20 (IP22 with option)
HS-2003 (Handset)
IP24
IF-8900 (Junction box)
IP22 (Bulkhead), IP20 (Tabletop)
RB-8900 (Remote station)
IP22
 RB-8900-W (Watertight remote station)
IP56
RC-8900 (VHF console)
IP20
EQUIPMENT LIST
Standard
VHF Radiotelephone
FM-8900S 1unit
Handset
HS-2003 1unit
Handset Cradle
FP05-05510 1unit
Installation materials and spare parts
1set
Option
Junction Box
IF-8900
Remote Station
RB-8900
Watertight Remote Station
RB-8900-W
Handset and Cradle
Flush Mount Kit
OP05-129
External Loudspeaker
SEM-21Q
Printer
PP-8800A/PP-510
Printer Interface
IF-8500
AC/DC Power Supply Unit
PR-240
VHF Console
RC-8900
