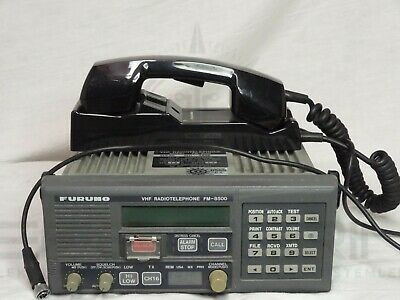

The FURUNO FM-8500 is a cost-effective all-in-one marine VHF radio system consisting of a 25 W VHF radiotelephone, a DSC modem and a CH 70 Watch Receiver.
It complies with GMDSS carriage requirements for safety and general communications.
The FURUNO FM-8500 is a cost-effective all-in-one marine VHF radio system consisting of a 25 W VHF radiotelephone, a DSC modem and a CH 70 Watch Receiver.
It complies with GMDSS carriage requirements for safety and general communications
The FM-8500 offers simplex/semi-duplex voice communications on all ITU channels in the 156-174 MHz VHF band. Other standard features are Dual Watch and Multiple Watch functions which allow a watch on CH 16 and another selected frequency.
Full Class A DSC functions are provided for distress
alert transmission and reception, as well as the general call formats: Individual Telephone, All Ships, Group and Area Call. Distress alert can be readily transmitted but an arrangement is provided to prevent an accidental activation.
The FM-8500 maintains a continual watch on CH 70 even while you are using another VHF channel. Upon receiving an incoming DSC message the FM-8500 gives aural and visual alarms.
The compact cabinet allows a flexible and space- saving installation on a navigation console or at the conning position.
VHF Section
GENERAL CHARACTERISTICS
1. Class of Emission
G3E (voice), G2B (DSC)
2. Communication System
Simplex/Semi-duplex
3. Channel Program
General version: 55 channels (RR Appendix 18)
U.S.A. version: General, US channels, Weather channels
Nordic version: General, Fish/Pleasure private
4. Power Supply
24 VDC, +30%, -10%
5. Display
24 characters x 2 lines, character 5 x 7 dots, backlit LCD (dimmable)
2 mW (200 Ω handset)
4. Time-out Timer
Deactivates the transmitter after an uninterrupted transmission of more than 5 minutes
TRANSMITTER
1. Frequency Range
155.00 - 161.475 MHz
2. RF Output Power
25 W, reducible to 1 W
US version: CH67, CH13 at 1 W, manual override for FULL
3. Frequency Stability
1.5 kHz (-20°C to +55°C)
4. Time-out Timer
Deactivates the transmitter after an uninterrupted transmission of more than 5 minutes
6. Adjacent Channel Selectivity
70 dB (+15°C to +35°C)
RECEIVER
1. Frequency Range
155.00 - 166.075 MHz
2. Receiving System
Double-conversion superheterodyne
IF: 21.4 MHz and 455 kHz
3. AF Output Power
3 W (internal 8 Ω loud speaker)
2 mW (200 Ω handset)
4. Audio Response
De-emphasis of 6 dB/oct +1/-3 dB
5. Sensitivity
-5 dBμV at SINAD 20 dB
6. Adjacent Channel Selectivity
70 dB (+15°C to +35°C)
DSC Section
1. Distress Call and Message
Distress call attempt is transmitted as five consecutive calls. It is repeated after a random delay of between 3.5 and 4.5 min from the beginning of initial call.
2. Message Storage
Receive: 50 distress messages plus 50 non-distress messages
Transmit: 50 non-distress messages plus 99 files containing station ID, telephone No.
3. Interface
Nav data: IEC61162
Printer: FURUNO MIF w/Interface box
4. Alarm
Aural and visual on receipt of a DSC call
5. Receiver Characteristics
DSC frequency: CH70
Calling sensitivity: Symbol error rate 10-2, input -3 dBμV
Watch keeping: Continuous watch on CH70
EQUIPMENT LIST
Standard
1. Transceiver unit 1 unit
2. Handset 1 set
3. Installation materials 1 set
Optional
1. Whip antennas for VHF and DSC
2. Coaxial antenna cable
3. Remote Station RB-700
4. Distributor DB-500 (Required to connect 2 or more sets of the RB-700. Extension kit is required in DB-500 to connect 3 sets of RB-700 or more)
