FELCOM-15 SSAS
SSAS / LRIT

The FELCOM 15 is FURUNO's new Inmarsat-C Mobile Earth Station. It provides a high quality two-way telex and data link between ships and other parties at sea or on land. All functions and services of the Inmarsat-C system are provided: EGC (Safety NETTM/FleetNETTM), distress message handling, two-way digital store-and-forward messaging including polling, data reporting, E-mail, etc.

Teklif Formu

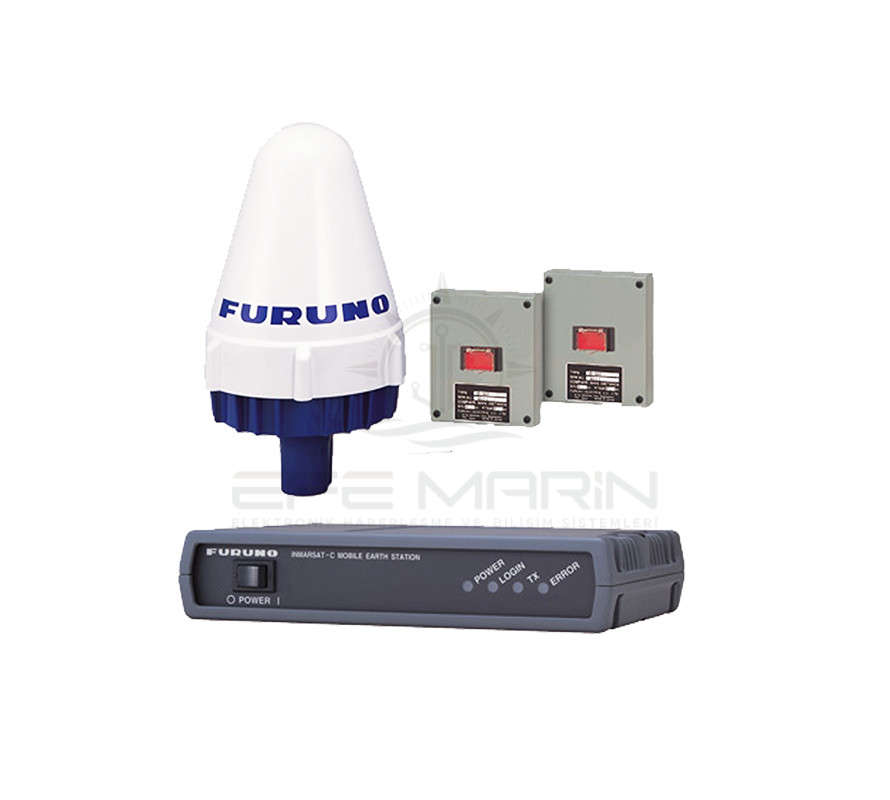

Distress alert are initiated by the remote distress alert unit. The distress message including own ship's position is easily edited. A PC can be used for editing the message via Ethernet when it is supplied with dedicated software. The FELCOM 15 consists of an antenna and display unit with keyboard. The display unit embodies a 10.4" color LCD and processor unit. The distress alert button is incorporated in the display for emergency. Data files and utility program on floppy disks are easily loaded into the processor through the front loading disk drive in the display unit. The compact design of display unit and omni-directional antenna unit offer space-saving installation. An optional GPS module is available for position reporting without operator's intervention. GMDSS compliance can be achieved by adding a printer and a AC/DC power supply unit.

Rule and Regulations
Complies with IMO Res. A.807 (19) Inmarsat-C, A.664 (16) EGC Performance Standards, A.694 (17) General requirements, MSC.68 (68), MSC/Circ 862, MSC 55/25 Inmarsat, IEC 61097-4 Inmarsat-C/EGC
Class identification
Felcom 15 is Class 2 Inmarsat-C SES (For info Class 0: EGC, Class 1: Basic SES, Class 2: Basic SES + EGC, Class 3: Basic SES + independent EGC)
Inmarsat-C services supported
EGC receiving (SafetyNETTM, FleetNETTM)
Distress message handling
Two-way, digital store-and-forward message handling: Telex, FAX (PSTN), Internet E-mail, X.25 (PSDN), X.400 (MHS), Closed Network (DNID), Special Access Code
Polling, Data Reporting
Frequency
TX:
1626.5 - 1646.5 MHz
RX:
1530.0 - 1545.0 MHz
Channel Spacing
5 kHz
5 kHz
Modulation
BPSK 600/1200 symbols/s
Output Power
17 W at final amplifier
Editing
Message editing, File protection by password, Easy editing by cut, paste, copy, search and replace commands
File Management
Adding, modifying and deleting, List and print files, Available memory count, Transferring data between memory and floppy disk
Utility Programs
System status indication, System diagnostic, Performance verification test (PVT), Commissioning sequence, Station list, Log book
Interface
RS-232C
1 port for EGC printer, PC
Ethernet 10Base-T
1 port for PC or LAN
IEC 61162:
1 port BWC, BWR, DBT, GGA, GSV, GLL, MTW, RMA, RMB, RMC, WPL, VDR, VTG, ZDA
Display Unit IC-215
Display:
10.4" color LCD (207 x 160 mm)
Message:
72 characters/line, 25 lines/screen
Printer PP-510
Mandatory for EGC operation as required by IMO Res. A.664 (16).
Printing paper:
Rolled, impact dot, 216 mm wide, 80 characters/line
Power Supply
12-24 VDC, 160W (TX), 75W (RX)
Environment
(IEC 60945 test method)
Temperature:
-15°C to +55°C (Protected units)
-25°C to +70°C (Exposed units)
Equipment List
Standard
1. Antenna Unit with 30 m Cable 1 unit
2. Terminal Unit with Keyboard 1 unit
3. Junction Box 1 unit
4. Distress Alert/Received Call Unit 1 unit
5. Alarm Unit 1 unit
6. Installation Materials and Spare Part
Option
1. GPS Board Kit OP16-24
2. Printer PP-510
3. Software for PC
4. Antenna Cable 8D-FB-CV (50 m), 12D-FB-CV (100 m)
5. AC/DC Power Supply Unit PR-240*
* Required for EGC, IMO Res. A.664 (16)/4 to operate on ship's mains
