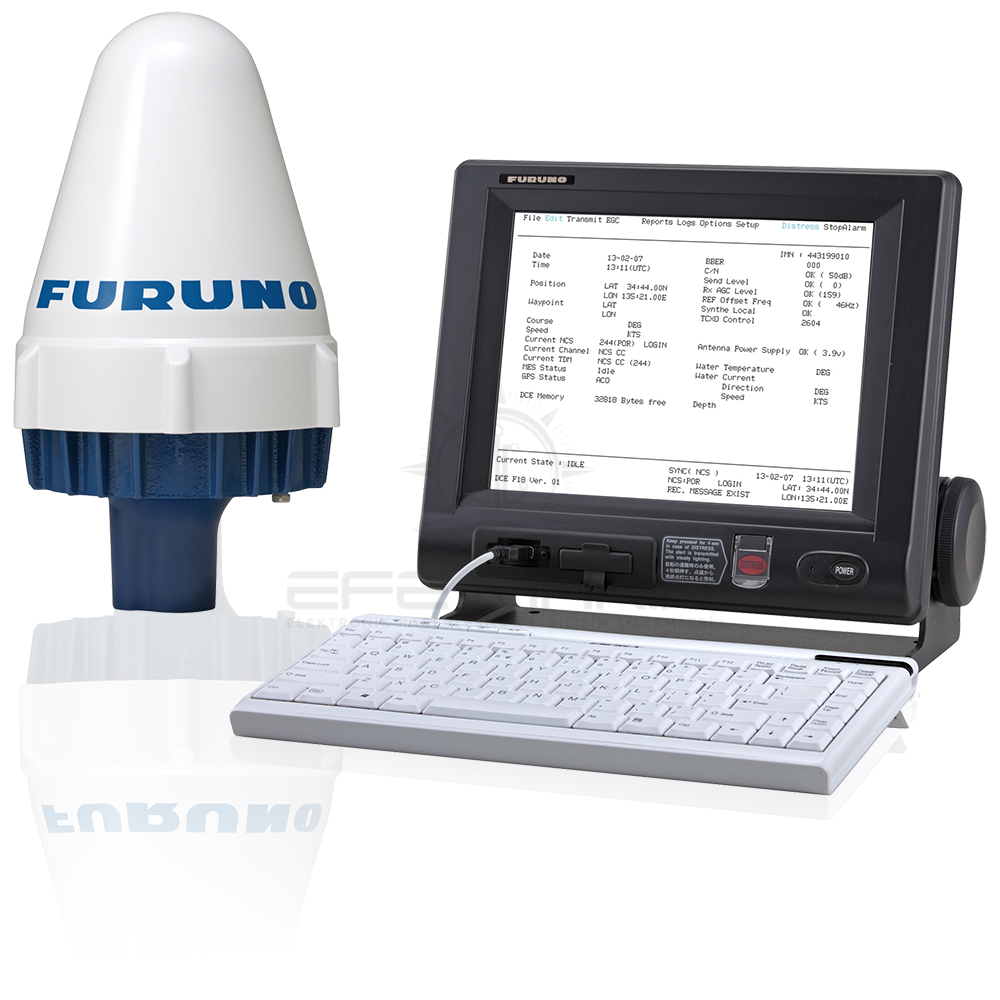

Inmarsat-C Ship Earth Station terminal for
GMDSS application
Full GMDSS compliance with optional printer and
AC/DC power supply
SSAS capability with SSAS Alert Units
Compatibility with LRIT application
Compatible with the following standard:
IMO A.570(14), IMO A.664(16), IMO A.694(17), IMO A.807(19), IMO MSC.147(77),
IMO MSC.36(63), IMO MSC.68(68) Annex 4, IMO MSC.97(73), IMO MSC.263.(84),
MSC/Circ.862, IEC 60945 Ed. 4, IEC 61097-4 Ed. 2, IEC 61162-1 Ed. 4
A wide variety of communication schemes available: telex, FAX, emailing, EGC, Data
reporting/polling, etc.
SD card for recording media
GPS receiver (option)

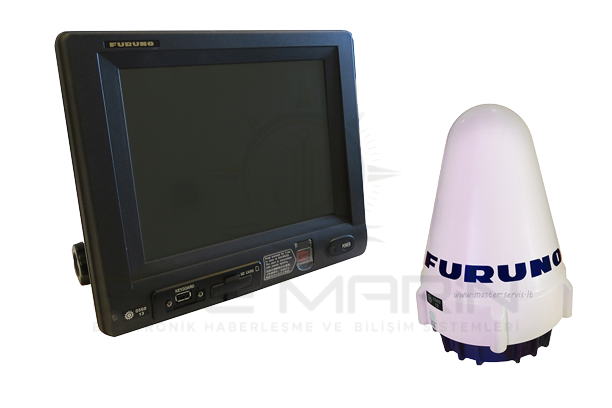

Inmarsat MINI-C Mobile Earth Station terminal
Compatibility with LRIT application
SSAS capability with SSAS Alert Units
A wide variety of communication schemes available:
telex, FAX, emailing, EGC (non-GMDSS), Data reporting/polling, etc.
GPS receiver incorporated
Black-box configuration allows flexible installation
SPECIFICATIONS
FELCOM18
Product Name
Inmarsat-C Mobile Earth Station
Minimum G/T
-23.0 dB/K (at elv. 5°)
Output Power
12-16 dBW (at elv. 5°)
Power Supply
TX: less than 130 W
RX: less than 60 W
FELCOM19
Product Name
Inmarsat MINI-C Mobile Earth Station
Minimum G/T
-23.7 dB/K (at elv. 5°)
Output Power
7-16 dBW (at elv. 5°)
Power Supply
TX: less than 50 W
RX: less than 10 W
FELCOM18 & FELCOM19
Frequency
TX: 1626.5-1646.5 MHz
RX: 1537.0-1544.2 MHz
Channel Spacing
5 kHz
Modulation Rate and format
TX: 600, 1200 sps Unfiltered BPSK
RX: 1200 sps Unfiltered BPSK
Power Supply
12-24 VDC
ENVIRONMENT
Temperature
Antenna Unit
-35 to +55°C (Storage: +70°C)
BDE
-15 to +55°C
Relative Humidity
40°C 95%
EQUIPMENT LIST
FELCOM18
Standard
1 Antenna Unit with 30 m cable IC-118 1 unit
2 Terminal Unit with keyboard IC-218 1 unit
3 Junction Box IC-318 1 unit
4 SSAS Alert Unit IC-307* 2 unit
5 Installation materials *applicable only for SSAS specification
FELCOM19
Standard
1 Antenna Unit with 30 m cable IC-119 1 unit
2 Communication Unit IC-219 1 unit
3 Junction Box IC-318* 1 unit
4 SSAS Alert Unit IC-307* 2 unit
5 Installation materials *applicable only for SSAS specification
Option
FURUNO18
Option
1 Distress Alert/Received Call Unit IC-305
2 Alarm Unit IC-306
3 AC/DC Power Supply Unit PR-240
4 GPS Board Kit
5 SSAS Alert Unit IC-307**
6 Printer PP-520 **applicable only for non-SSAS specification
FURUNO19
1 AC/DC Power Supply Unit PR-240
2 SSAS Alert Unit IC-307**
3 Junction Box IC-318**
4 Printer PP-520 **applicable only for non-SSAS specification
