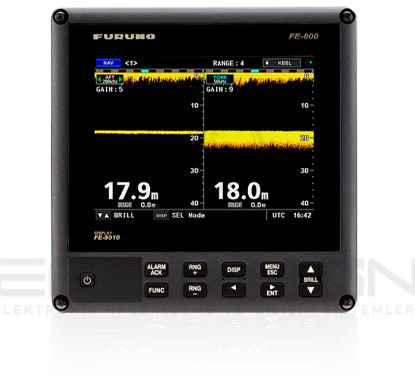

Current range setting, reference point for the
depth reading (Transducer/Surface/Keel) as well
as currently selected mode are displayed.
This area shows the information specific to the
display mode currently selected. Please refer to
each of the display modes for details
Guide to currently available actions is displayed.
Under an alert situation, the information about
the most imminent alert is displayed.
SPECIFICATIONS
Product Name
NAVIGATIONAL ECHO SOUNDER
Measuring Range
50 kHz: 2 to 200 m
200 kHz: 1 to 200 m
Accuracy
0.5 m at 20 m range, 5 m at 200 m range, or 2.5% of depth range
Roll/Pitch Tolerance
Roll: ±10° Pitch: ±5°
Discrimination
more than 5 mm per meter depth on 20 m range more than 0.5 mm per meter depth on 200 m range
IEC 61162-1 (OUT) x 4 Contact closure x 1 (Power fail)
Auto Function
Range, Gain
Alarm
Power Failure*At the time of the power failure, FE-800 cannot generate visual/audible alarms. Please interface the equipment which can generate visual/audible alarms to FE-800
